Hey there! As a supplier of cartridge heaters, I've seen firsthand how the watt density distribution can have a huge impact on the performance of these heaters. In this blog, I'm gonna break down what watt density distribution is, why it matters, and how it affects the performance of cartridge heaters.
First off, let's talk about what watt density is. Watt density is basically the amount of power (in watts) that's being delivered per unit area of the heating element. It's usually measured in watts per square inch (W/in²) or watts per square centimeter (W/cm²). A higher watt density means more power is being concentrated in a smaller area, while a lower watt density means the power is spread out over a larger area.
So, how does the watt density distribution affect the performance of a cartridge heater? Well, it can have several effects, and I'll go through them one by one.
1. Heating Efficiency
One of the most important things affected by watt density distribution is the heating efficiency of the cartridge heater. When the watt density is evenly distributed across the heating element, the heater can transfer heat more efficiently to the surrounding medium. This means that it can reach the desired temperature faster and use less energy in the process.

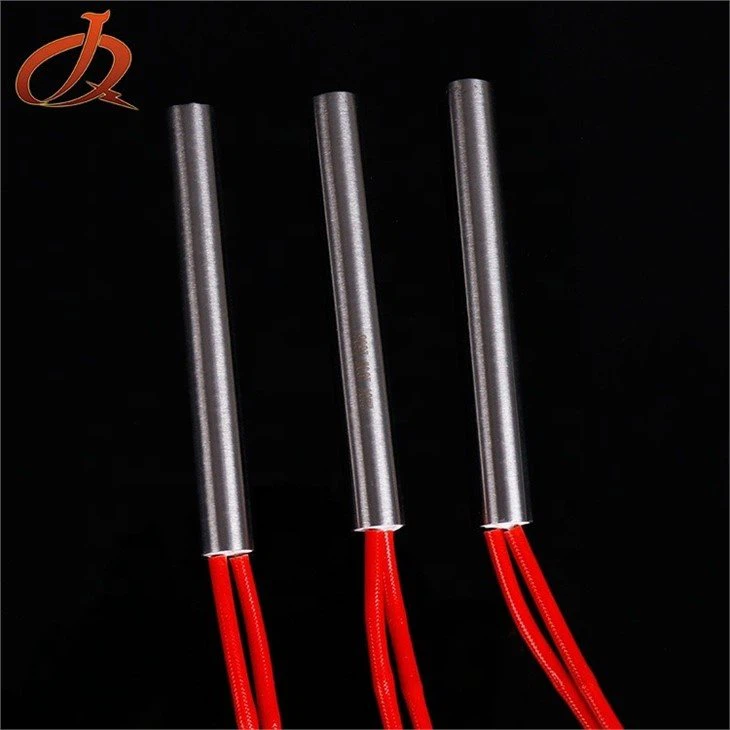

For example, if you have a 12mm Electric Cartridge Heater with an uneven watt density distribution, some parts of the element might get much hotter than others. This can lead to hot spots, where the heat isn't being used effectively. The hot spots can cause premature failure of the heating element and also waste energy because the heater has to work harder to heat the entire area.
On the other hand, a cartridge heater with a well - distributed watt density will heat up more uniformly. This allows for better heat transfer to the object being heated, whether it's a liquid, a solid, or a gas. As a result, the heater can operate more efficiently, saving you money on energy costs in the long run.
2. Temperature Uniformity
Temperature uniformity is another crucial aspect of cartridge heater performance. In many applications, it's essential that the temperature is consistent across the entire heating area. For instance, in plastic injection molding, an uneven temperature can cause the plastic to cool at different rates, leading to defects in the final product.
The watt density distribution plays a key role in achieving temperature uniformity. A heater with a uniform watt density will produce a more consistent temperature across its length and diameter. This is because the power is being evenly distributed, so there are no areas that are significantly hotter or colder than others.
Let's say you're using an Element Stainless Steel Cartridge Heater in a process where temperature uniformity is critical. If the watt density is not properly distributed, you might end up with some areas of the heated material being over - heated while others are under - heated. This can lead to product quality issues and even equipment damage.
3. Lifespan of the Heater
The lifespan of a cartridge heater is also affected by the watt density distribution. When there are hot spots due to uneven watt density, the heating element in those areas is subjected to higher temperatures than the rest of the element. High temperatures can cause the material of the heating element to degrade more quickly, leading to a shorter lifespan.
For example, in a 12v Electric Cartridge Heater Heating Element, if the watt density is concentrated in one small area, that area will experience a lot of stress. The high temperature can cause the insulation to break down, the wire to oxidize, and eventually, the element to fail.
By contrast, a cartridge heater with a balanced watt density distribution will have a more even temperature profile across the element. This reduces the stress on the heating element and helps it last longer. So, if you want your cartridge heater to have a long and reliable service life, it's important to pay attention to the watt density distribution.
4. Material Compatibility
The watt density distribution can also affect the compatibility of the cartridge heater with different materials. Some materials are more sensitive to high temperatures than others. If the watt density is too high in certain areas, it can cause the material being heated to degrade or even melt.
For example, if you're using a cartridge heater to heat a delicate plastic material, an uneven watt density distribution with high - watt - density hot spots can cause the plastic to warp or burn. This can ruin the product and also damage the heater.
On the other hand, a well - distributed watt density allows you to use the cartridge heater with a wider range of materials. You can control the temperature more precisely, ensuring that the material is heated within its safe operating range.
How We Ensure Proper Watt Density Distribution
At our company, we take great care to ensure that our cartridge heaters have the right watt density distribution. We use advanced manufacturing techniques and quality control processes to make sure that the power is evenly distributed across the heating element.
First of all, we use high - quality materials for the heating element. The type of wire and insulation we choose can affect how the heat is generated and distributed. We also use precise winding techniques to ensure that the wire is evenly spaced along the length of the heater.
During the manufacturing process, we conduct thorough testing to measure the watt density distribution. We use specialized equipment to detect any hot spots or uneven power distribution. If we find any issues, we make the necessary adjustments to correct them before the heater is shipped out.
Conclusion
In conclusion, the watt density distribution has a significant impact on the performance of a cartridge heater. It affects heating efficiency, temperature uniformity, the lifespan of the heater, and material compatibility. As a supplier, we understand the importance of getting the watt density distribution right, and we work hard to provide our customers with high - quality cartridge heaters that perform well.
If you're in the market for a cartridge heater and want to ensure that you're getting a product with the optimal watt density distribution, we'd love to talk to you. Whether you need a 12mm Electric Cartridge Heater, an Element Stainless Steel Cartridge Heater, or a 12v Electric Cartridge Heater Heating Element, we can help you find the right solution for your needs. Contact us today to start the conversation about your cartridge heater requirements.
References
- "Handbook of Industrial Heating" - This comprehensive handbook provides in - depth knowledge about different types of industrial heaters, including cartridge heaters, and discusses the importance of watt density distribution.
- "Principles of Heat Transfer" - A well - known textbook that explains the fundamental principles of heat transfer, which are directly related to how watt density affects the performance of cartridge heaters.
