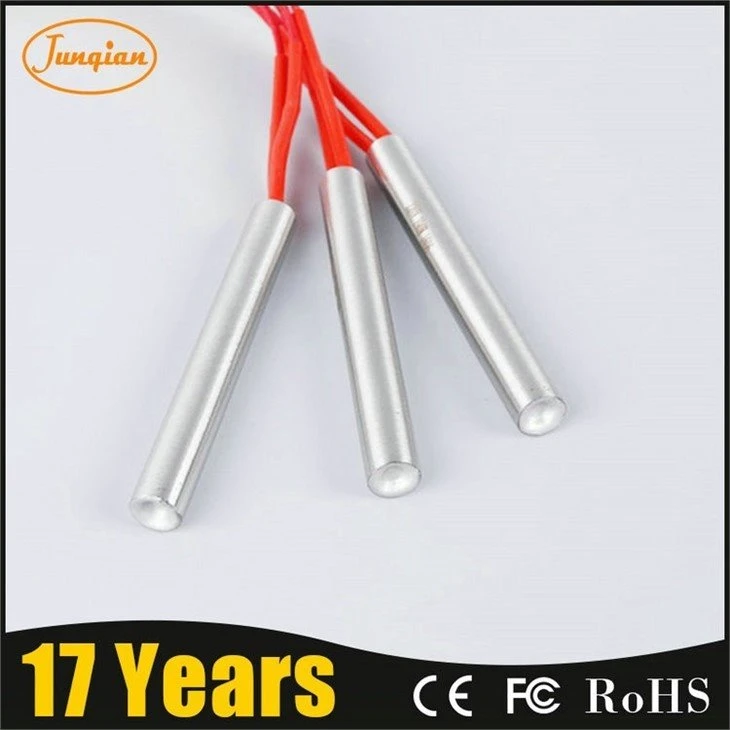

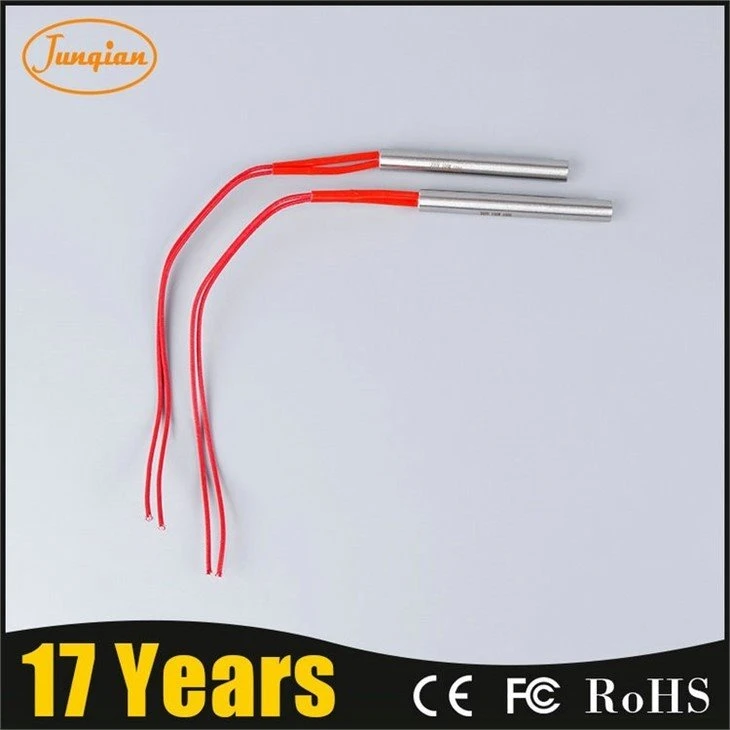

Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,that is used in heating applications.by way of insertion into metal blocks via a series of drilled holes.
Cartridge heaters are manufactured in two basic forms - high density and low density. High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Cartridge Heater for Mould Parameter | |
Resistance heating wire material | Cr20Ni80 |
Tube material | SS304,SS316,SS310S,SS321,INCOLOY 800,INCOLOY 840 |
Tube diameter | 3-30mm |
Diameter tolerance | -0.02~0.2mm (as your request) |
Tube length | 15-3000mm |
Length tolerance | ±1mm |
Max. Temperature | 800℃ |
Wattage tolerance | -10%~5% |
Voltages | 12V/24V/36V/48V/110V/220V/230V/380V/415V/440V |
Standard cold zone | 5-10mm |
Insulation resistance (cold) | ≥500MΩ |
Max. leakage current | ≤0.5mA |
Thermocouple | Type J , Type K ,Type E |
