Flexible Heating Electric Element is a kind of high-tech product, which replace traditional electric heating tube. It combines quartz tube and optional heating wires, such as OCR25AL5 and 2080 Nichrome wire. It has many advantages:
1.Fast Heating, energy saving (Over 30% than traditional heating material).
2.Good far-infrared radiation, advanced hygienical function.
3.High thermal efficiency, extremely heating rate.
4.Long life span.
5.Strong resistance cold and hot flash degeneration.
6.Good acid and corrosion resistance.
7.Stable electrical Performance.
Voltage (V) | 10-500 | ||
Power (W) | 10~8000 | Power Error | -10~5 |
Length (MM) | 150~3000 | Length Error (MM) | ±2 |
Diameter (MM) | 8, 10, 12, 14, 18, 22, 28 | Diameter Error(MM) | ±0.05 |
Thermal Conversion Efficiency | ≥86% | Working Temperature (℃) | ≤800 |
Thermal Radiation Conversion Efficiency | ≥70% | Heating Temperature (℃) | ≤900 |
Normal Total Emissivity | ≥88% | Infrared Wavelength (μm) | 1.5~16 |
Color Temperature (K) | 2400-3500 | Average Service Life (H) | 5000 |

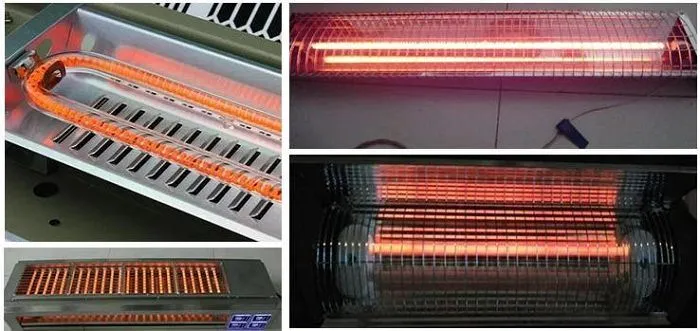

Application
